HLT RFID Linen Tag is a state-of-the-art, durable, and flexible RFID transponder made of fabric that can resist heat, pressure, and stretching. It is perfect for monitoring and tracing textile assets’ lifecycle, such as workwear, uniforms, and flat linens. HLT RFID linen transponder comes with a unique ID, enabling touchless laundry management and digital transparency. RFID facilities connected with IT management systems can seamlessly track textiles throughout the soil collection, laundering, and distribution processes.

HLT RFID Linen Tag for Laundry Management TEXBIT

Key Features of RFID Linen Chip

1, Flexible, thin, smooth, and Robust.
2, Long read range and bulk reading performance.
3, Guaranteed for 200 washing cycles working through sterilization, dewater, heat iron processer under pressure 60 bars, 200°C heating.
4, Fit for stitching, heat-sealing, pouching, or hanging.
5, On Demand service: laser logo with EPC encoding in RFID chip.


Collection HLT RFID Linen Transponders

HLT tags delivery formats
HLT Serial Laundry Tag FormatHLT-3615HLT-5512HLT-6012HLT-7015HLT-7010/7410NOTE
Tag size36x15mm55x12mm60x12mm70x15mm70x10mm
74x10mm
More sizes are available
Reading Range @30dbm2.0mts5.0mts6.0mts8.0mts8.0mtsup to 30% weak after 200cycles laundry
TypeDouble Layers for StitchYesYesYesYesYesTypical format
Heat SealingYesYesYesYesN/ASoft, touchless
Double Layers for Heat SealingYesYesYesYesN/ARobust, suitable for PPE.
PouchYesYesYesYesYesLogo weaved
Optional Tiny 3.5×3.5×0.8mm ModuleYesYesYesYesYesThinner and tiny chip module
Code / QR / DataMatrix Laser PrintedYesYesYesYesN/AVariable data processes with TID collection


HLT RFID Laundry Tag Pouched Selections

Alternative woven material from 30D to 100D, a custom logo jacquard on pouch, and customized RFID tag assembling in pouched with specific size, material, and means of  sealed with delivery,  or pouches separately packaging. The OEKO-TEX 100 certificate and eurofins colour fastness are available for the pouches as well.


HLT RFID Linen Tag Variable Data

Laser Printed: EPC Code; 1D, 2D Barcode; QR Code; DATA-Matrix; Logo

RFID Chip Data Programming: EPC Programming & Locked / Access Password,

All data include EPC Encoding, Laser printed and TID provide correspond matching each specific tag in list 100% tested.

HLT RFID Laundry Chip Variable Data

Installation

Stitch Tagging: To be stitched into the hem of a textile. Stitch the laundry tag away from the folding lines.
Heat Sealing: To be heat-sealed directly on the textile at +200°C (392°F), for 12~14s.
In Pouch: To be stitched like a standard care label. Stitch the laundry tag away from the folding lines.

Installation     Heat sealing instructions


Applications of RFID Linen Tag

Textile Assets E-tracking items: linen, uniforms, workwear, fire retardant, footwear, mask, mats, mops for healthcare, hotel, restaurant, even fashion apparel industries.

RFID Laundry Chip for Workwear Uniform Rental

Uniform, Workwear

Uniform, Workwear RFID Tag for Uniform Rental: Accurate, Efficiency, Cost Saving Uniform rental and laundry services are essential for businesses that require their employees to wear uniforms or protective clothing (PPE). These services provide clean and well-maintained garments that are vital for safety and hygiene in the workplace. However, uniform rental processes can be a tedious and time-consuming task for…
RFID Linen Tag for Hotel Hospitality

Hospitality

Hospitality RFID Tags for Hospitality Laundry Management The hospitality industry is known for its high standards of service and attention to detail, and this is reflected in every aspect of its operations, including laundry services. The laundry requirements of hotels, resorts, spas, and other hospitality establishments are vast and complex, manual sorting of hotel linens and textiles significantly takes lots…
RFID Laundry Tag for Fashion Apparel

Apparel, Fashion

Apparel, Fashion Washable RFID Tags for Clothing As the fashion and apparel industry continues to evolve, the need for advanced technology solutions to improve operational efficiency, enhance the customer experience, and support sustainability efforts has become increasingly important. RFID technology has emerged as a powerful tool for achieving these goals, particularly in the laundry and textile management space. The use…
RFID Smart Linen Tag for Healthcare

Healthcare

Healthcare Laundry RFID Tags for Healthcare Linen The healthcare industry is constantly evolving, and with it comes a need for innovative solutions to improve efficiency and accuracy. One such solution is the use of RFID technology. RFID tags for healthcare linen have become increasingly popular in hospitals, rehabilitation centers, outpatient clinics, and nursing homes. These tags help healthcare facilities run…
Smart Linen Tag for Cleaning

Cleaning

Cleaning RFID Tag for Cleaning Items Tracking The cleaning industry has always been an essential part of our lives, ensuring that our workplaces and public spaces remain hygienic and safe. With the advent of technology, the industry has witnessed significant changes, one innovation is the use of RFID tags for tracking cleaning items such as mats, mops, carpets, rugs, and…

You might also be interested in these topics…

FAQs of TEXBIT UHF Linen RFID Tags
What Can RFID Laundry Tracking Do For You

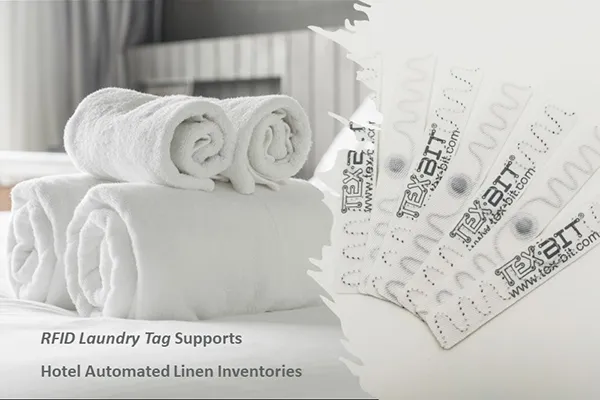

RFID Laundry Tag Supports Hotel Reopenings with Automated Linen Inventories TEX-BIT
